Quartz R/S - Linear luminaire

Product description

  • Available in three form factors:60cm 120cm and 150cm
  • Emergency kit available
  • Three temperatures: 3000K, 4000K and 5000K

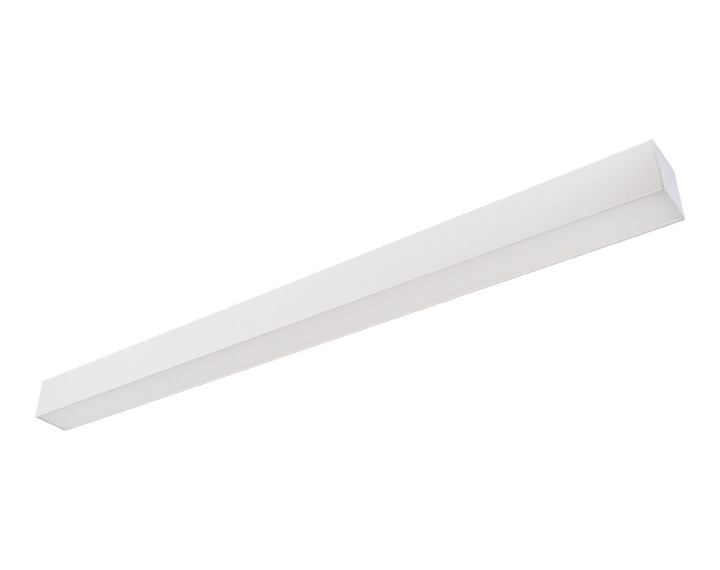

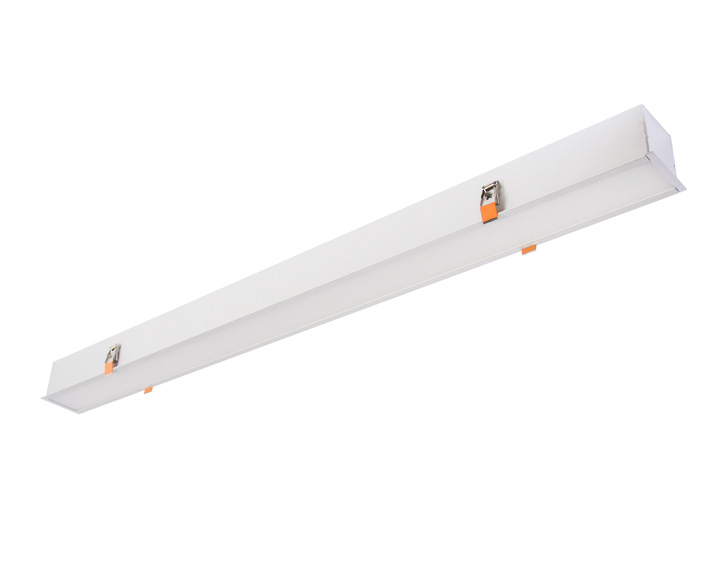

  • Three types of mounting: recessed (Quartz R), surface-mounted and suspended (Quartz S)
  • With IP40 protection
  • 110 (degrees) lens angle
  • Color rendering index: 80

Applications

Grocery & supermarket, Office, Healthcare, Hospitality


Ask for a quote

Technical data

Dimensions
1454x76.9x73.9 mm / 1168x76.9x73.9 mm / 596x76.9x73.9 mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Housing color
Anodised grey
Color Rendering
CRI 80
Protection class
Safety Class 1
IK Code
IK04
IP Factor
IP40
Housing materials
Aluminium & Polycarbonate
