Baylor

Product description

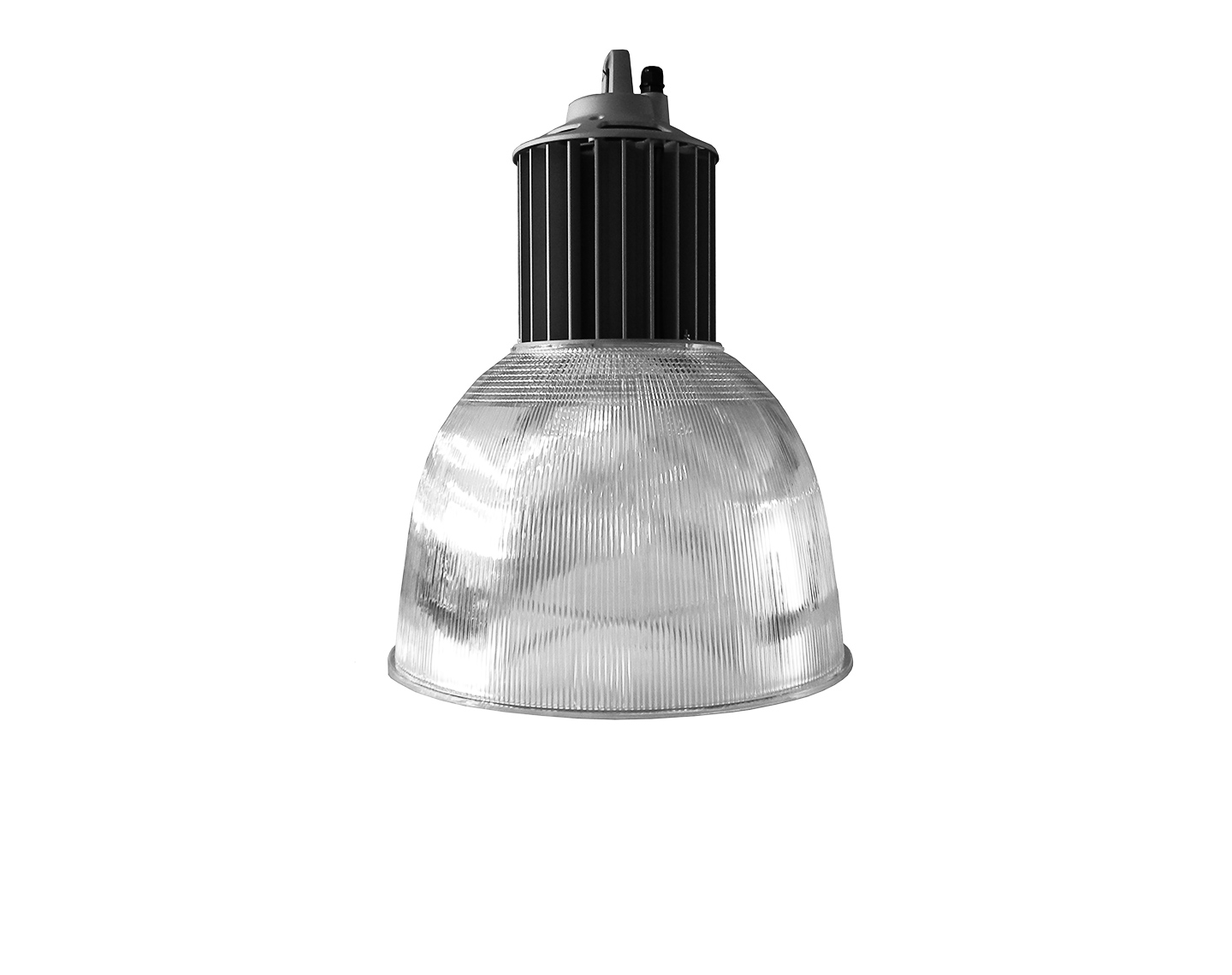

Baylor is a HID replacement lamp, designed for indoor spaces such as indoor warehouses or sports halls. Its industrial yet modern design makes it suitable also for more general lighting projects such as special meeting rooms, lobbies or large, high-ceiling spaces. Little maintenance is needed and the energy consumption is very low. Additional glass cover for reducing dust accumulation. Wide beam optic for uniform illumination, free from dark spots. Housing comes in adonised grey for a better blend with the environment.

Baylor luminaire comes in several series, with various add-on and controls:

• Baylor TEC – the standard for any project in the industrial sector
• Baylor ECO-DALI – with DALI controls for dimming

Features and Benefits

• CRI 80 as standard
• 4 color temperatures: 2700K, 3000K, 3500K, 4000K
• Long rated life: L90/B10@50.000h
• High efficiency: 113 lm/w@4000K
• Dimmable (for ECO Series)

• Overview
• Applications & References
• LDT Range

Technical data

Dimensions
461xØ311mm

Working Temperature
-20C°... +45C° / -4F ... +113F

Power
27W / 35W / 42W / 47W

Color Rendering
CRI 80

Color Temperature
2700K / 3000K / 3500K / 4000K

Protection class
Safety Class 1

IK Code
IK08

IP Factor
IP20

Housing materials
Aluminium & Polycarbonate

---

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more

---

LDT Range

Product code	Lumens	Efficiency	CCT	Download
202000 Baylor GK60E/2700/27W/80/A70	2870	107	2700	LDT
202001 Baylor GK60E/3000/27W/80/A70	2895	108	3000	LDT
202002 Baylor GK60E/3500/27W/80/A70	2975	111	3500	LDT
202003 Baylor GK60E/4000/27W/80/A70	3035	113	4000	LDT
202005 Baylor GK60E/2700/35W/80/A70	3460	99	2700	LDT
202006 Baylor GK60E/3000/35W/80/A70	3495	100	3000	LDT
202007 Baylor GK60E/3500/35W/80/A70	3590	103	3500	LDT
202008 Baylor GK60E/4000/35W/80/A70	3660	105	4000	LDT
202010 Baylor GK60E/2700/42W/80/A70	3970	95	2700	LDT
202011 Baylor GK60E/3000/42W/80/A70	4010	96	3000	LDT
202012 Baylor GK60E/3500/42W/80/A70	4120	99	3500	LDT
202013 Baylor GK60E/4000/42W/80/A70	4200	100	4000	LDT
202015 Baylor GK60E/2700/47W/80/A70	4380	94	2700	LDT
202016 Baylor GK60E/3000/47W/80/A70	4420	95	3000	LDT
202017 Baylor GK60E/3500/47W/80/A70	4540	97	3500	LDT
202018 Baylor GK60E/4000/47W/80/A70	4030	86	4000	LDT
102000 Baylor GK60E/2700/27W/80/A70	2870	107	2700	LDT
102001 Baylor GK60E/3000/27W/80/A70	2895	108	3000	LDT
102002 Baylor GK60E/3500/27W/80/A70	2975	111	3500	LDT
102003 Baylor GK60E/4000/27W/80/A70	3035	113	4000	LDT
102005 Baylor GK60E/2700/35W/80/A70	3460	99	2700	LDT
102006 Baylor GK60E/3000/35W/80/A70	3495	100	3000	LDT
102007 Baylor GK60E/3500/35W/80/A70	3590	103	3500	LDT
102008 Baylor GK60E/4000/35W/80/A70	3660	105	4000	LDT
102010 Baylor GK60E/2700/42W/80/A70	3970	95	2700	LDT
102011 Baylor GK60E/3000/42W/80/A70	4010	96	3000	LDT
102012 Baylor GK60E/3500/42W/80/A70	4120	99	3500	LDT
102013 Baylor GK60E/4000/42W/80/A70	4200	100	4000	LDT
102015 Baylor GK60E/2700/47W/80/A70	4380	94	2700	LDT
102016 Baylor GK60E/3000/47W/80/A70	4420	95	3000	LDT
102017 Baylor GK60E/3500/47W/80/A70	4540	97	3500	LDT
102018 Baylor GK60E/4000/47W/80/A70	4630	99	4000	LDT

---
