Dyad Track

Product description

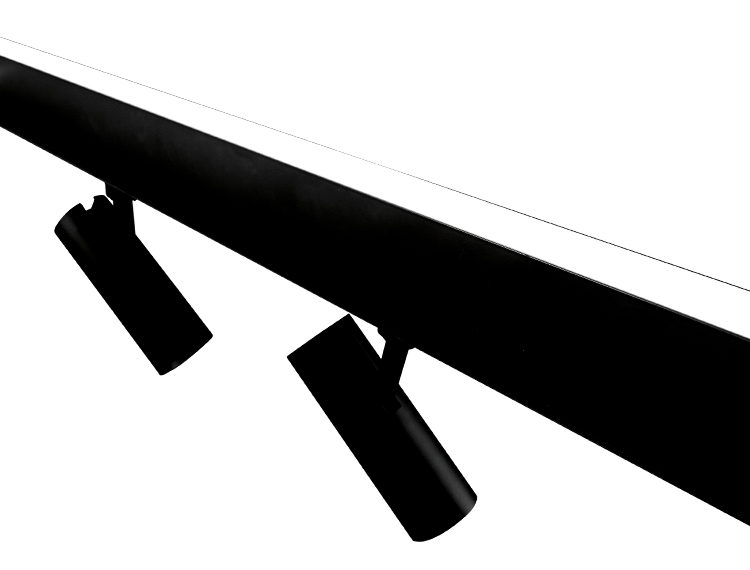

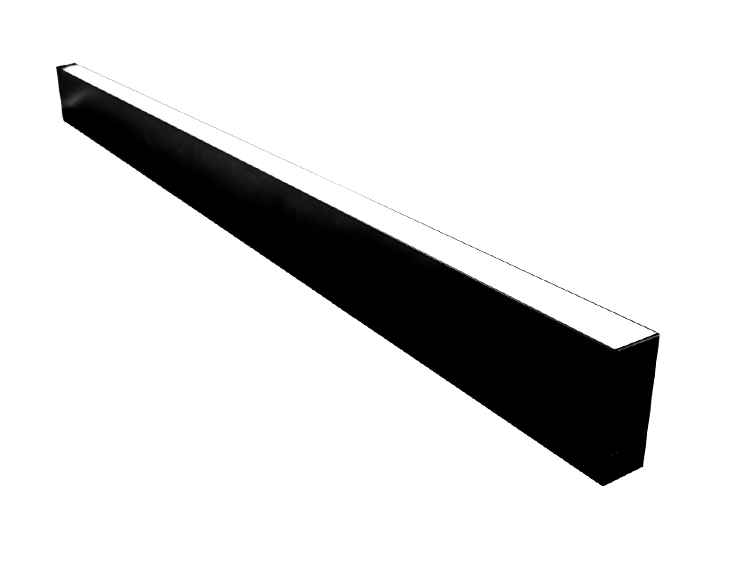

Dyad Track is a versatile suspended track that emits light both upwards and downwards. The upward side is equipped with LED modules that emit light in an ultra-wide distribution of 130 degrees. The underside can be equipped with any type of track-mounted luminaire from spotlights to linear luminaires.

Providing light on its superior side, Dyad Track creates a mellow ambient in the working space by projecting the light beam towards the ceiling.

Dyad Track is suitable for spaces with large horizontal, reflective surfaces By emitting light upward, toward the ceiling, Dyad Track can create a glare-free general illumination, enhancing comfort.

Dyad Track is available in the ECO-DALI series – with DALI controls for dimming.

Features and Benefits

• CRI 80 as standard
• 4 color temperatures: 3000K, 4000K, 5000K and 6500K
• Long rated life – L90/B10 at 50,000h
• Extra wide beam: 130°

Similar products
3-phase track with DALI line / H Track
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
1000 x 85 x 31.4 mm / 2000 x 85 x 31.4 mm / 3000 x 85 x 31.4 mm / 4000 x 85 x 31.4 mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Housing color
RAL 9005 - Jet Black
White
Color Rendering
CRI 80
Protection class
Safety Class 1
IK Code
IK04
IP Factor
IP20
Housing materials
Aluminium & Polycarbonate

Applications & References

Office

How we work and how offices look like as a result, has changed tremendously. From cubicles to open spaces, modular and flexible arrangements – workspace has started to reflect the needs of a more mobile, flat, collaborative workforce that demand comfort and privacy.

LED office lighting has to support several functions, beyond workforce requirements: it can showcase your brand and corporate culture, it can increase productivity, well-being, and happiness and finally, it creates significant savings, both in energy and maintenance effort.
