Sage

Product description

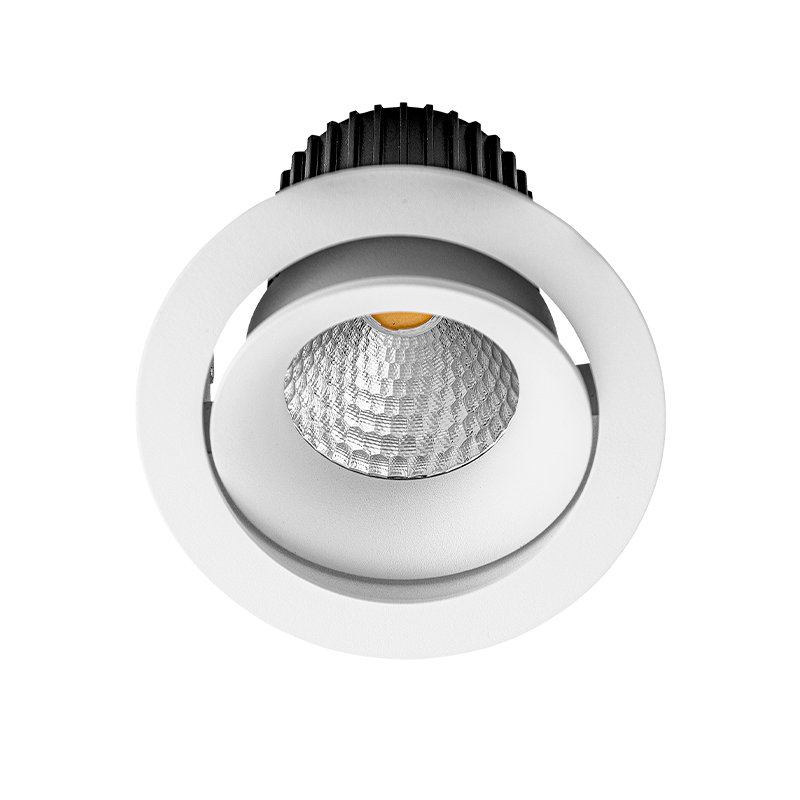

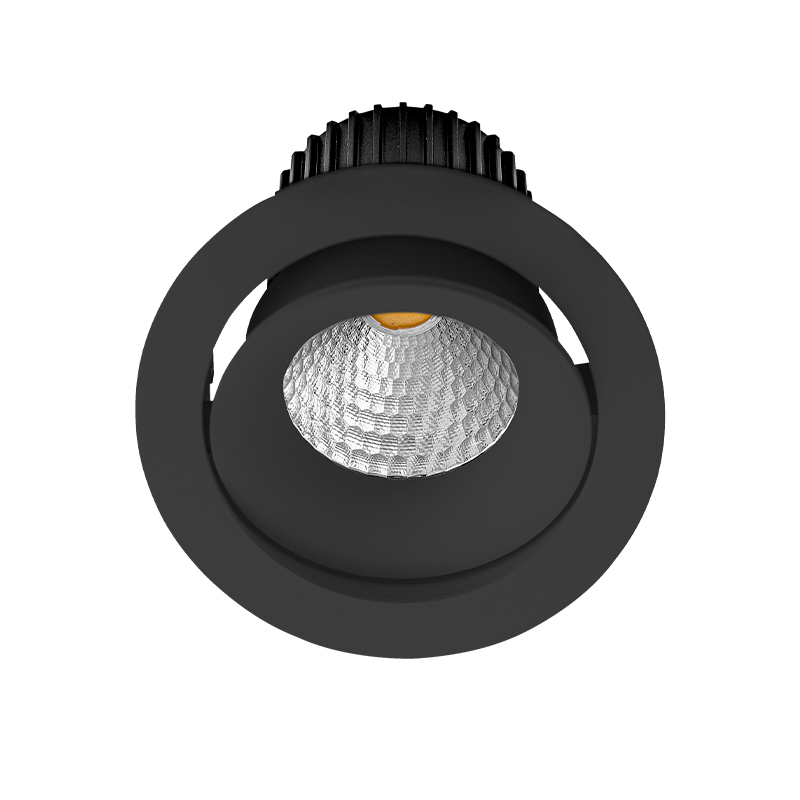

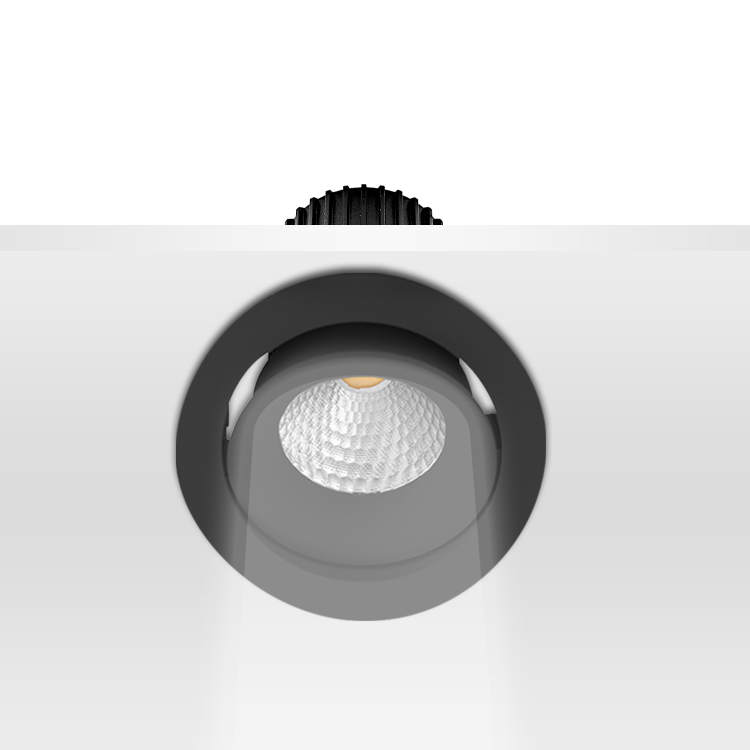

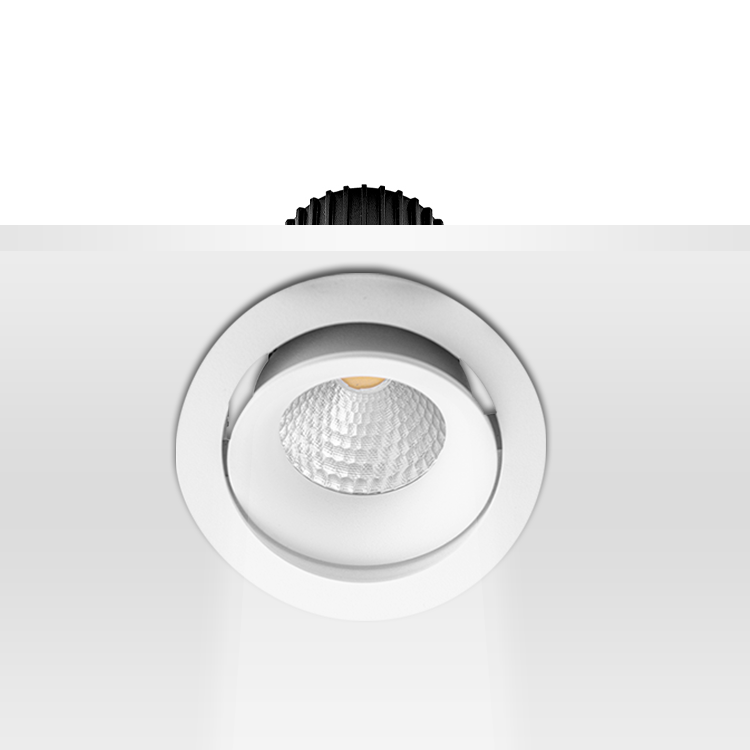

Our adjustable spotlight that creates brilliant accent lighting. Housing comes in two colors - jet black and signal white, for a perfect blending with different environments. Narrow-angle beams (15°, 24°, 36°) allow for very precise light direction. Can be equipped with FAS and AGI special colors for bright colored goods in fashion retail and food retail sectors.

Sage has particular technical specifications, determined by various add-on and controls:

  • Sage Non-DALI – the standard for retail spaces
  • Sage DALI – with DALI controls for illumination adjustments

 Features and Benefits

  • CRI 80 as standard, 93 and 95 available
  • 7 color temperatures: 3000K, 4000K, FAS, AGI3000, AGI3500, AGI4000 and AMB2200
  • Long rated life: L90/B10@50.000h
  • Luminaire efficiency: 94 lm/W @4000K
  • Dimmable (only for DALI Series)
Similar products
Polar / Ledomero / Raylan / Zett / Lyra S / Lyra L / Rigan / Tube / Loop
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
Ø100 x 78 mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Power
8W / 10W / 12W
Housing color
RAL 9003 - Signal white
RAL 9005 - Jet Black
Color Rendering
CRI 80 / CRI 93 / CRI 95
Color Temperature
3000K / 4000K / FAS
Protection class
Safety Class 1
IK Code
IK02
IP Factor
IP20
Housing materials
Aluminium & Polycarbonate

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more

LDT Range

Product code Lumens Efficiency CCT Download
282002 Sage D33011/3000/8W/80/A24 715 90 3000 LDT
282003 Sage D33011/4000/8W/80/A24 750 94 4000 LDT
282004 Sage D33011/3000/8W/80/A36 715 90 3000 LDT
282005 Sage D33011/4000/8W/80/A36 750 94 4000 LDT
282000 Sage D33011/3000/8W/80/A15 715 90 3000 LDT
282001 Sage D33011/4000/8W/80/A15 750 94 4000 LDT
282008 Sage D33011/3000/10W/80/A24 890 89 3000 LDT
282009 Sage D33011/4000/10W/80/A24 930 93 4000 LDT
282010 Sage D33011/3000/10W/80/A36 890 89 3000 LDT
282011 Sage D33011/4000/10W/80/A36 930 93 4000 LDT
282006 Sage D33011/3000/10W/80/A15 890 89 3000 LDT
282007 Sage D33011/4000/10W/80/A15 930 93 4000 LDT
282014 Sage D33011/3000/12W/80/A24 1000 84 3000 LDT
282015 Sage D33011/4000/12W/80/A24 1045 88 4000 LDT
282016 Sage D33011/3000/12W/80/A36 1000 84 3000 LDT
282017 Sage D33011/4000/12W/80/A36 1045 88 4000 LDT
282012 Sage D33011/3000/12W/80/A15 1000 84 3000 LDT
282013 Sage D33011/4000/12W/80/A15 1045 88 4000 LDT
282020 Sage D33011/FAS/8W/95/A36 530 67 FAS LDT
282018 Sage D33011/FAS/8W/95/A15 530 67 FAS LDT
282019 Sage D33011/FAS/8W/95/A24 530 67 FAS LDT
282022 Sage D33011/FAS/10W/95/A24 665 67 FAS LDT
282023 Sage D33011/FAS/10W/95/A36 665 67 FAS LDT
282021 Sage D33011/FAS/10W/95/A15 665 67 FAS LDT
282025 Sage D33011/FAS/12W/95/A24 755 63 FAS LDT
282026 Sage D33011/FAS/12W/95/A36 755 63 FAS LDT
282024 Sage D33011/FAS/12W/95/A15 755 63 FAS LDT
182002 Sage D33011/3000/8W/80/A24 715 90 3000 LDT
182003 Sage D33011/4000/8W/80/A24 750 94 4000 LDT
182004 Sage D33011/3000/8W/80/A36 715 90 3000 LDT
182005 Sage D33011/4000/8W/80/A36 750 94 4000 LDT
182000 Sage D33011/3000/8W/80/A15 715 90 3000 LDT
182001 Sage D33011/4000/8W/80/A15 750 94 4000 LDT
182009 Sage D33011/4000/10W/80/A24 930 93 4000 LDT
182010 Sage D33011/3000/10W/80/A36 890 89 3000 LDT
182011 Sage D33011/4000/10W/80/A36 930 93 4000 LDT
182006 Sage D33011/3000/10W/80/A15 890 89 3000 LDT
182007 Sage D33011/4000/10W/80/A15 930 93 4000 LDT
182008 Sage D33011/3000/10W/80/A24 890 89 3000 LDT
182015 Sage D33011/4000/12W/80/A24 1045 88 4000 LDT
182016 Sage D33011/3000/12W/80/A36 1000 84 3000 LDT
182017 Sage D33011/4000/12W/80/A36 1045 88 4000 LDT
182012 Sage D33011/3000/12W/80/A15 1000 84 3000 LDT
182013 Sage D33011/4000/12W/80/A15 1045 88 4000 LDT
182014 Sage D33011/3000/12W/80/A24 1000 84 3000 LDT
182019 Sage D33011/FAS/8W/95/A24 530 67 FAS LDT
182020 Sage D33011/FAS/8W/95/A36 530 67 FAS LDT
182018 Sage D33011/FAS/8W/95/A15 530 67 FAS LDT
182023 Sage D33011/FAS/10W/95/A36 665 67 FAS LDT
182021 Sage D33011/FAS/10W/95/A15 665 67 FAS LDT
182022 Sage D33011/FAS/10W/95/A24 665 67 FAS LDT
182025 Sage D33011/FAS/12W/95/A24 755 63 FAS LDT
182026 Sage D33011/FAS/12W/95/A36 755 63 FAS LDT
182024 Sage D33011/FAS/12W/95/A15 755 63 FAS LDT

Technical Specifications

Sage - Non-DALI Series Sage - DALI Series
