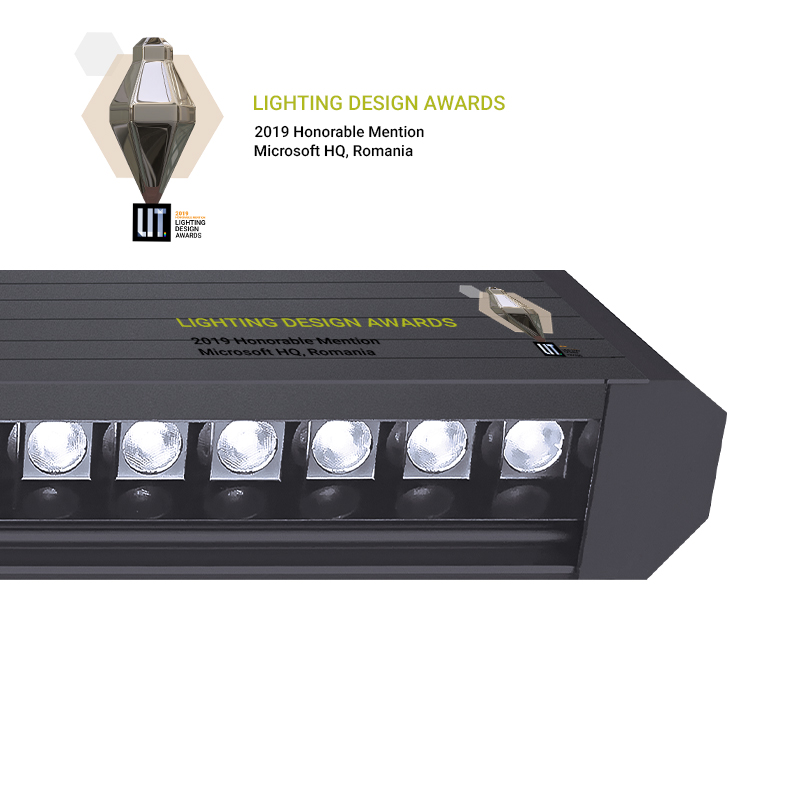

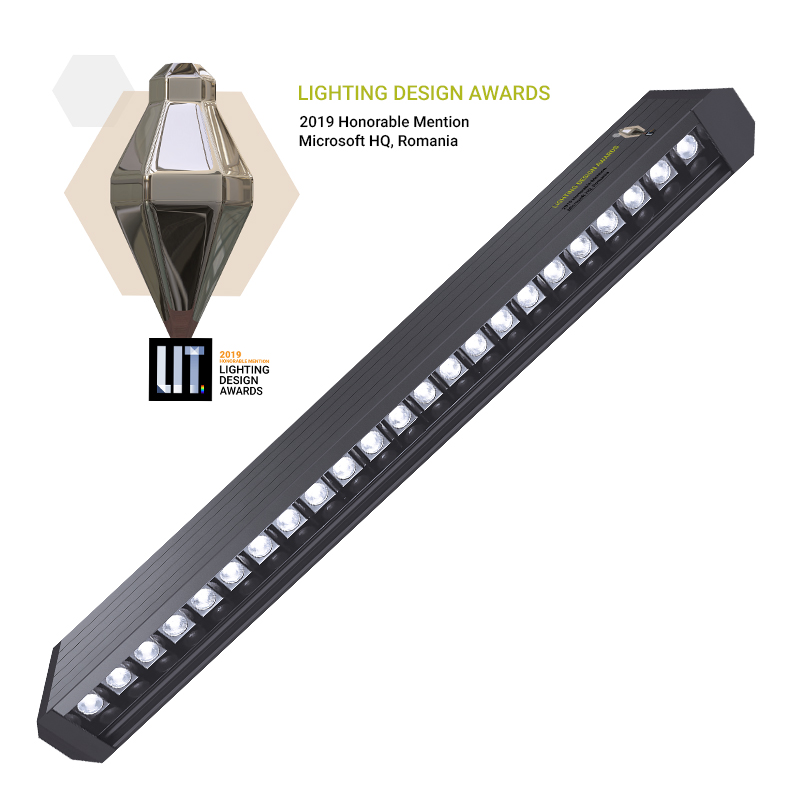

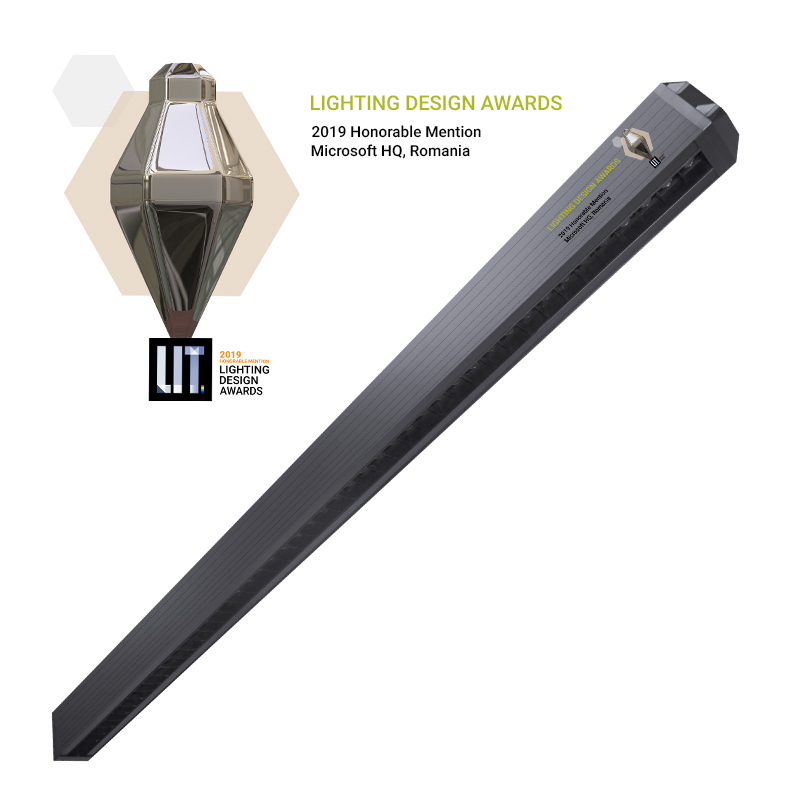

Ennio UP&DOWN Individual Lens

Product description

Ennio UP&DOWN Individual Lens is a versatile suspended luminaire that emits light both upwards and downwards. Providing indirect light on its superior side, Ennio creates a mellow ambient in the working space with reduced glare due to indirect lighting by projecting the light beam towards the ceiling.

Tunable white - Light color temperature can be adjusted to reflect the need or mood of the user. The light provided by the luminaires can be changed from warm to cold, in a range between 2700K - 6500K.

PI-LED - Combines variable white light and light of the RGB color system in one single light source. It can vary the color temperature between 2700K - 6500K along Planckian curve in the course of a day.

Ennio UP&DOWN Individual Lens has several series, determined by various add-on and controls:

  • Ennio UP&DOWN Individual Lens Non-DALI: the standard version
  • Ennio UP&DOWN Individual Lens Non-DALI EM: the standard version with emergency option (UP)
  • Ennio UP&DOWN Individual Lens DALI: with DALI controls for illumination adjustments
  • Ennio UP&DOWN Individual Lens DALI EM: with DALI controls for illumination adjustments and emergency options (UP)
  • Ennio UP&DOWN Individual Lens TW: the tunable white system with adjustable colour temperature
  • Ennio UP&DOWN Individual Lens PI-LED: simulates the spectral quality of natural daylight over the entire day.

Features and Benefits

  • CRI 80 as standard
  • Color temperatures: 3000K and 4000K
  • Long rated life: L90/B10@50.000h
  • Luminaire efficiency (UP/DOWN): 108/109 lm/w @4000K
Similar products
Ennio S PC / Ennio SM PC / Artus UTS / Ennio UP&DOWN PC / Lenyk IL / Lenyk N IL / Lenyk PC / Galaxy Blade / Galaxy Blade N / Galaxy Slim
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
1520 x 57 x 81mm / 2990 x 57 x 81mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Housing color
Anodised grey
Anodised black
Color Rendering
CRI 80
Protection class
Safety Class 1
IK Code
IK02
IP Factor
IP20
Housing materials
Aluminium & Polycarbonate

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

Office

How we work and how offices look like as a result, has changed tremendously. From cubicles to open spaces, modular and flexible arrangements – workspace has started to reflect the needs of a more mobile, flat, collaborative workforce that demand comfort and privacy.

LED office lighting has to support several functions, beyond workforce requirements: it can showcase your brand and corporate culture, it can increase productivity, well-being, and happiness and finally, it creates significant savings, both in energy and maintenance effort.

> Read more

Healthcare

Hospitals and other healthcare facilities are one of the most difficult cases among lighting applications. Lighting has to cater to several categories of users while achieving substantial energy efficiencies.

Doctors and nurses have different lighting needs depending on the tasks performed – lighting in operating theaters is very different to that of nurses’ stations. And patients need lighting that is beneficial to their well-being, speeds recovery and preserves safety, particularly at night or for an older demographic.

On the other hand, healthcare facilities are among the most energy-intensive buildings, running 24/7. Thus, energy efficiency is a major source of cost savings, helping managers to direct funds to better medical equipment or training.

LED luminaires have the capacity to fulfill all these roles, being the perfect solution for modern-day hospitals.

> Read more

Hospitality

When it comes to hospitality lighting - the sky is the limit. Hotels, restaurants, pubs and resort - all vary a lot in concept, purpose, and design, thus lighting for hospitality is a case by case instance. The main focus should fall on the aesthetics of the place and the wellbeing of the guest, though.

For the hotelier, an added focus is the energy efficiency of the entire system - given that guest are not the most careful when it comes to shutting off lights. In addition, an intelligent lighting management system that enables you to adjust lighting according to presence is a huge benefit. Think of all the large areas that are infrequently visited such as long corridors, stairways, gyms or spas.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more
