Chase

Product description

Chase is a track spotlight with a sleek and modern design. Can be equipped with a wide range of color special temperatures. Die-cast aluminum housing. Particularly suitable for accent lighting in retail and commercial spaces with 5 optics variants.

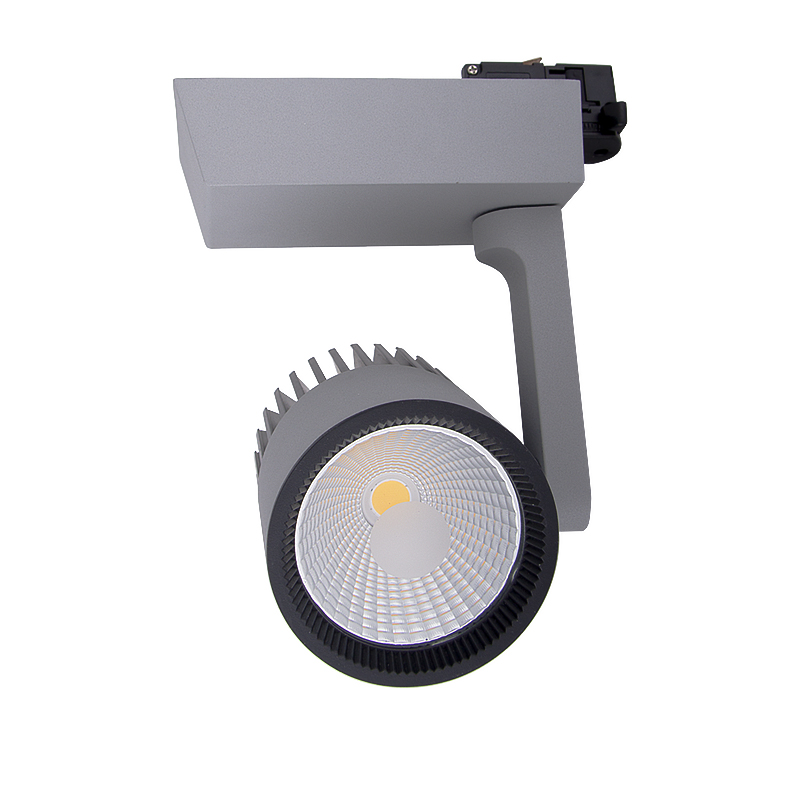

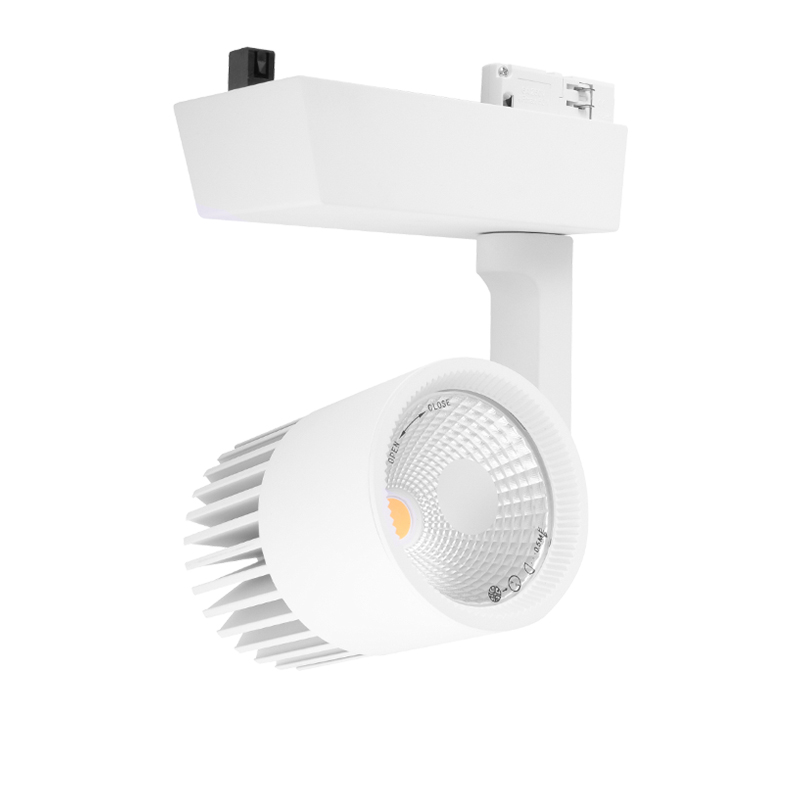

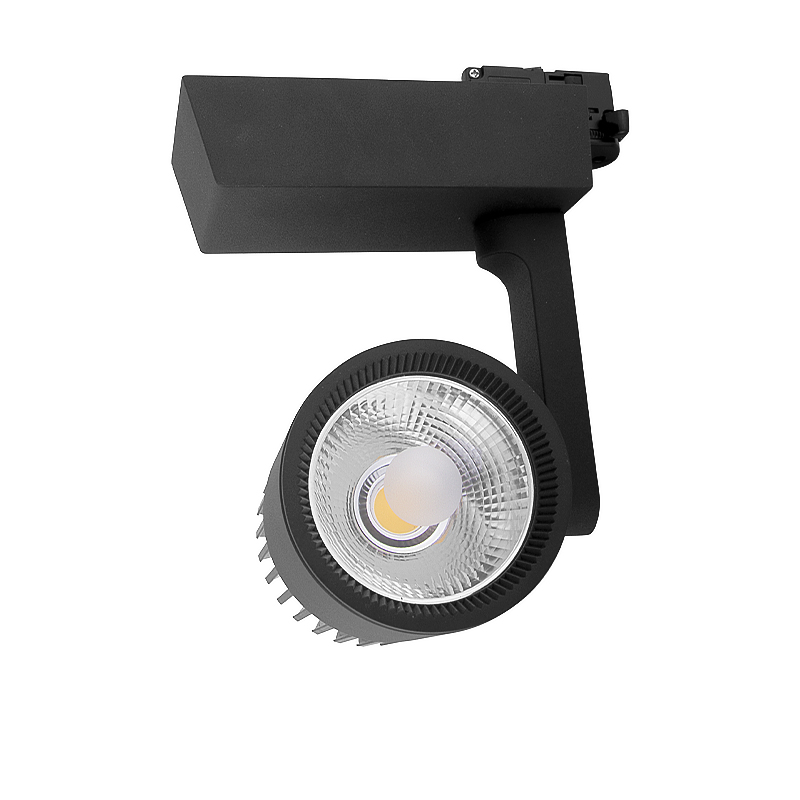

The aluminum housing and the three color options: RAL 9003 - signal white, RAL 9005 - jet black and RAL 9006 - white aluminium, give it a modern touch.

Chase track spotlight comes in several series, with a variety of add-ons and controls:

  • Chase TEC – represents the standard series for all projects in the retail sector
  • Chase DALI DC - String – with DALI controls for light control and DC power lines for individual luminaire control

Features and Benefits

  • Spotlight head has a rotation angle of 350° and pivots through 90°
  • CRI 80 as standard, up to 98 for certain special color temperatures
  • A wide range of optics – starting from narrow to wide beams: 15°, 30°, 45°, 60°, 90°
  • Extended lifespan – 50,000h at 90% luminous flux
  • Luminaire efficiency: 117lm/W @4000K
  • Intelligent control through the DALI protocol
Similar products
Caster / Tulip S / Tulip L / Sola TRK / Halo TRK / Orion / Loki / Amyas TRK
Interested in a custom EU made lighting solution for your project? Contact us

Technical data

Dimensions
Ø106x168x219mm
Working Temperature
-20C°... +45C° / -4F ... +113F
Power
17W / 23W / 29W / 34W / 27W / 35W / 42W / 14W / 20W
Housing color
RAL 9003 - Signal white
RAL 9005 - Jet Black
RAL 9006 - White aluminium
Color Rendering
CRI 80 / CRI 90 / CRI 93 / CRI 98 / CRI 95
Color Temperature
AGI3000 / AGI3500 / AGI4000 / ART2700 / ART3000 / 2700K / 3000K / 3500K / 4000K / FAS / BVF / FBS / FZM / FSM / FSH / AMB2200
Protection class
Safety Class 1
IK Code
IK02
IP Factor
IP20
Housing materials
Aluminium & Glass

Applications & References

Grocery & Supermarket

Selling groceries is a highly competitive business. Consumers have a lot of options on their hands, from small corner shops and specialty stores to large hypermarkets and even online shopping. It’s no wonder that the new competitive edge for retailers, is the customer experience.

Lighting has the power to transform the customer experience and therefore influencing purchases. Light can attract attention, guide the eyes and the footsteps and showcase products at their best in full-color, mouth-watering shades.

> Read more

Retail

Lighting influences desire, purchases and the memory of the shopping experience.

Light is powerful. More powerful than any of us think. In the retail sector light is a decisive factor in helping customers browse, choose, buy and afterward, remember fondly the shopping experience. They may not be able to explain what it was that enchanted them, but we know: it’s the light. Because in retail, the way you showcase items, the visual part of the experience, is one of the most important.

> Read more

DIY

Lighting for DIY retailers is similar to that of general retail - in that the purpose of the lighting system is to create a differentiating customer experience and at the same time, trigger purchase impulses to increase revenue.

However, given their sheers size, the type of luminaires used differ from smaller footprint retailers. Here, continuous line or trunking systems are recommended, because they allow for maximum flexibility and, most importantly, simplicity.

> Read more

LDT Range

Product code Lumens Efficiency CCT Download
104513 Chase S35006/AGI3000/17W/93/A15 985 58 AGI3000 LDT
104514 Chase S35006/AGI3500/17W/93/A15 1050 62 AGI3500 LDT
104515 Chase S35006/AGI4000/17W/93/A15 1115 66 AGI4000 LDT
104519 Chase S35006/AGI3000/17W/93/A45 985 58 AGI3000 LDT
104520 Chase S35006/AGI3500/17W/93/A45 1050 62 AGI3500 LDT
104521 Chase S35006/AGI4000/17W/93/A45 1115 66 AGI4000 LDT
104522 Chase S35006/AGI3000/17W/93/A60 985 58 AGI3000 LDT
104523 Chase S35006/AGI3500/17W/93/A60 1050 62 AGI3500 LDT
104524 Chase S35006/AGI4000/17W/93/A60 1115 66 AGI4000 LDT
104525 Chase S35013/AGI3000/17W/93/A90 985 58 AGI3000 LDT
104526 Chase S35013/AGI3500/17W/93/A90 1050 62 AGI3500 LDT
104527 Chase S35013/AGI4000/17W/93/A90 1115 66 AGI4000 LDT
104531 Chase S35006/AGI3000/23W/93/A15 1330 58 AGI3000 LDT
104532 Chase S35006/AGI3500/23W/93/A15 1440 63 AGI3500 LDT
104533 Chase S35006/AGI4000/23W/93/A15 1550 68 AGI4000 LDT
104534 Chase S35006/AGI3000/23W/93/A30 1330 58 AGI3000 LDT
104535 Chase S35006/AGI3500/23W/93/A30 1440 63 AGI3500 LDT
104536 Chase S35006/AGI4000/23W/93/A30 1550 68 AGI4000 LDT
104537 Chase S35006/AGI3000/23W/93/A45 1330 58 AGI3000 LDT
104538 Chase S35006/AGI3500/23W/93/A45 1440 63 AGI3500 LDT
104539 Chase S35006/AGI4000/23W/93/A45 1550 68 AGI4000 LDT
104540 Chase S35006/AGI3000/23W/93/A60 1330 58 AGI3000 LDT
104541 Chase S35006/AGI3500/23W/93/A60 1440 63 AGI3500 LDT
104542 Chase S35006/AGI4000/23W/93/A60 1550 68 AGI4000 LDT
104543 Chase S35013/AGI3000/23W/93/A90 1330 58 AGI3000 LDT
104544 Chase S35013/AGI3500/23W/93/A90 1440 63 AGI3500 LDT
104545 Chase S35013/AGI4000/23W/93/A90 1550 68 AGI4000 LDT
104549 Chase S35006/AGI3000/29W/93/A15 1680 58 AGI3000 LDT
104550 Chase S35006/AGI3500/29W/93/A15 1820 63 AGI3500 LDT
104551 Chase S35006/AGI4000/29W/93/A15 1960 68 AGI4000 LDT
104552 Chase S35006/AGI3000/29W/93/A30 1680 58 AGI3000 LDT
104553 Chase S35006/AGI3500/29W/93/A30 1820 63 AGI3500 LDT
104554 Chase S35006/AGI4000/29W/93/A30 1960 68 AGI4000 LDT
104555 Chase S35006/AGI3000/29W/93/A45 1680 58 AGI3000 LDT
104556 Chase S35006/AGI3500/29W/93/A45 1820 63 AGI3500 LDT
104557 Chase S35006/AGI4000/29W/93/A45 1960 68 AGI4000 LDT
104558 Chase S35006/AGI3000/29W/93/A60 1680 58 AGI3000 LDT
104559 Chase S35006/AGI3500/29W/93/A60 1820 63 AGI3500 LDT
104560 Chase S35006/AGI4000/29W/93/A60 1960 68 AGI4000 LDT
104561 Chase S35013/AGI3000/29W/93/A90 1680 58 AGI3000 LDT
104562 Chase S35013/AGI3500/29W/93/A90 1820 63 AGI3500 LDT
104563 Chase S35013/AGI4000/29W/93/A90 1960 68 AGI4000 LDT
104567 Chase S35006/AGI3000/34W/93/A15 1900 56 AGI3000 LDT
104568 Chase S35006/AGI3500/34W/93/A15 1995 59 AGI3500 LDT
104569 Chase S35006/AGI4000/34W/93/A15 2095 62 AGI4000 LDT
104570 Chase S35006/AGI3000/34W/93/A30 1900 56 AGI3000 LDT
104571 Chase S35006/AGI3500/34W/93/A30 1995 59 AGI3500 LDT
104572 Chase S35006/AGI4000/34W/93/A30 2095 62 AGI4000 LDT
104573 Chase S35006/AGI3000/34W/93/A45 1900 56 AGI3000 LDT
104574 Chase S35006/AGI3500/34W/93/A45 1995 59 AGI3500 LDT
104575 Chase S35006/AGI4000/34W/93/A45 2095 62 AGI4000 LDT
104576 Chase S35006/AGI3000/34W/93/A60 1900 56 AGI3000 LDT
104577 Chase S35006/AGI3500/34W/93/A60 1995 59 AGI3500 LDT
104578 Chase S35006/AGI4000/34W/93/A60 2095 62 AGI4000 LDT
104579 Chase S35013/AGI3000/34W/93/A90 1900 56 AGI3000 LDT
104580 Chase S35013/AGI3500/34W/93/A90 1995 59 AGI3500 LDT
104581 Chase S35013/AGI4000/34W/93/A90 2095 62 AGI4000 LDT
104303 Chase S35006/ART2700/27W/98/A15 1855 69 ART2700 LDT
104304 Chase S35006/ART2700/27W/98/A30 1855 69 ART2700 LDT
104305 Chase S35006/ART2700/27W/98/A45 1855 69 ART2700 LDT
104307 Chase S35006/ART2700/35W/98/A15 2290 66 ART2700 LDT
104308 Chase S35006/ART2700/35W/98/A30 2290 66 ART2700 LDT
104309 Chase S35006/ART2700/35W/98/A45 2290 66 ART2700 LDT
104311 Chase S35006/ART2700/42W/98/A15 2610 63 ART2700 LDT
104312 Chase S35006/ART2700/42W/98/A30 2610 63 ART2700 LDT
104313 Chase S35006/ART2700/42W/98/A45 2610 63 ART2700 LDT
104315 Chase S35006/ART3000/27W/98/A15 1995 74 ART3000 LDT
104316 Chase S35006/ART3000/27W/98/A30 1995 74 ART3000 LDT
104317 Chase S35006/ART3000/27W/98/A45 1995 74 ART3000 LDT
104319 Chase S35006/ART3000/35W/98/A15 2425 70 ART3000 LDT
104320 Chase S35006/ART3000/35W/98/A30 22425 641 ART3000 LDT
104321 Chase S35006/ART3000/35W/98/A45 2425 70 ART3000 LDT
104323 Chase S35006/ART3000/42W/98/A15 2755 66 ART3000 LDT
104324 Chase S35006/ART3000/42W/98/A30 2755 66 ART3000 LDT
104325 Chase S35006/ART3000/42W/98/A45 2755 66 ART3000 LDT
104000 Chase S35006/2700/14W/80/A15 1485 107 2700 LDT
104001 Chase S35006/3000/14W/80/A15 1500 108 3000 LDT
104002 Chase S/35006/3500/14W/80/A15 1540 110 3500 LDT
104003 Chase S35006/4000/14W/80/A15 1570 113 4000 LDT
104005 Chase S35006/2700/14W/80/A30 1485 107 2700 LDT
104006 Chase S35006/3000/14W/80/A30 1500 108 3000 LDT
104007 Chase S/35006/3500/14W/80/A30 1540 110 3500 LDT
104008 Chase S35006/4000/14W/80/A30 1570 113 4000 LDT
104010 Chase S35006/2700/14W/80/A45 1485 107 2700 LDT
104011 Chase S35006/3000/14W/80/A45 1500 108 3000 LDT
104012 Chase S/35006/3500/14W/80/A45 1540 110 3500 LDT
104013 Chase S35006/4000/14W/80/A45 1570 113 4000 LDT
104364 Chase S35006/2700/14W/80/A60 1485 107 2700 LDT
104365 Chase S35006/3000/14W/80/A60 1500 108 3000 LDT
104366 Chase S/35006/3500/14W/80/A60 1540 110 3500 LDT
104367 Chase S35006/4000/14W/80/A60 1570 113 4000 LDT
104015 Chase S35013/2700/14W/80/A90 1485 107 2700 LDT
104016 Chase S35013/3000/14W/80/A90 1500 108 3000 LDT
104017 Chase S35013/3500/14W/80/A90 1540 110 3500 LDT
104018 Chase S35013/4000/14W/80/A90 1570 113 4000 LDT
104020 Chase S35006/2700/20W/80/A15 2080 104 2700 LDT
104021 Chase S35006/3000/20W/80/A15 2100 105 3000 LDT
104022 Chase S/35006/3500/20W/80/A15 2160 108 3500 LDT
104023 Chase S35006/4000/20W/80/A15 2200 110 4000 LDT
104025 Chase S35006/2700/20W/80/A30 2080 104 2700 LDT
104026 Chase S35006/3000/20W/80/A30 2100 105 3000 LDT
104027 Chase S/35006/3500/20W/80/A30 2160 108 3500 LDT
104028 Chase S35006/4000/20W/80/A30 2200 110 4000 LDT
104030 Chase S35006/2700/20W/80/A45 2080 104 2700 LDT
104031 Chase S35006/3000/20W/80/A45 2100 105 3000 LDT
104032 Chase S/35006/3500/20W/80/A45 2160 108 3500 LDT
104033 Chase S35006/4000/20W/80/A45 2200 110 4000 LDT
104369 Chase S35006/2700/20W/80/A60 2080 104 2700 LDT
104370 Chase S35006/3000/20W/80/A60 2100 105 3000 LDT
104371 Chase S/35006/3500/20W/80/A60 2160 108 3500 LDT
104372 Chase S35006/4000/20W/80/A60 2200 110 4000 LDT
104035 Chase S35013/2700/20W/80/A90 2080 104 2700 LDT
104036 Chase S35013/3000/20W/80/A90 2100 105 3000 LDT
104037 Chase S35013/3500/20W/80/A90 2160 108 3500 LDT
104038 Chase S35013/4000/20W/80/A90 2200 110 4000 LDT
104040 Chase S35006/2700/27W/80/A15 2945 110 2700 LDT
104041 Chase S35006/3000/27W/80/A15 2970 110 3000 LDT
104042 Chase S/35006/3500/27W/80/A15 3055 114 3500 LDT
104043 Chase S35006/4000/27W/80/A15 3135 117 4000 LDT
104045 Chase S35006/2700/27W/80/A30 2945 110 2700 LDT
104046 Chase S35006/3000/27W/80/A30 2970 110 3000 LDT
104047 Chase S/35006/3500/27W/80/A30 3055 114 3500 LDT
104048 Chase S35006/4000/27W/80/A30 3135 117 4000 LDT
104050 Chase S35006/2700/27W/80/A45 2945 110 2700 LDT
104051 Chase S35006/3000/27W/80/A45 2970 110 3000 LDT
104052 Chase S/35006/3500/27W/80/A45 3055 114 3500 LDT
104053 Chase S35006/4000/27W/80/A45 3135 117 4000 LDT
104055 Chase S35013/2700/27W/80/A90 2945 110 2700 LDT
104056 Chase S35013/3000/27W/80/A90 2970 110 3000 LDT
104057 Chase S35013/3500/27W/80/A90 3055 114 3500 LDT
104058 Chase S35013/4000/27W/80/A90 3135 117 4000 LDT
104060 Chase S35006/2700/35W/80/A15 3710 106 2700 LDT
104061 Chase S35006/3000/35W/80/A15 3745 107 3000 LDT
104062 Chase S/35006/3500/35W/80/A15 3815 109 3500 LDT
104063 Chase S35006/4000/35W/80/A15 3920 112 4000 LDT
104065 Chase S35006/2700/35W/80/A30 3710 106 2700 LDT
104066 Chase S35006/3000/35W/80/A30 3745 107 3000 LDT
104067 Chase S/35006/3500/35W/80/A30 3815 109 3500 LDT
104068 Chase S35006/4000/35W/80/A30 3920 112 4000 LDT
104070 Chase S35006/2700/35W/80/A45 3710 106 2700 LDT
104071 Chase S35006/3000/35W/80/A45 3745 107 3000 LDT
104072 Chase S/35006/3500/35W/80/A45 3815 109 3500 LDT
104073 Chase S35006/4000/35W/80/A45 3920 112 4000 LDT
104379 Chase S35006/2700/35W/80/A60 3710 106 2700 LDT
104380 Chase S35006/3000/35W/80/A60 3745 107 3000 LDT
104381 Chase S/35006/3500/35W/80/A60 3745 107 3500 LDT
104382 Chase S35006/4000/35W/80/A60 3920 112 4000 LDT
104075 Chase S35013/2700/35W/80/A90 3710 106 2700 LDT
104076 Chase S35013/3000/35W/80/A90 3745 107 3000 LDT
104077 Chase S35013/3500/35W/80/A90 3815 109 3500 LDT
104078 Chase S35013/4000/35W/80/A90 3920 112 4000 LDT
104080 Chase S35006/2700/42W/80/A15 4200 100 2700 LDT
104081 Chase S35006/3000/42W/80/A15 4200 100 3000 LDT
104082 Chase S/35006/3500/42W/80/A15 4330 104 3500 LDT
104083 Chase S35006/4000/42W/80/A15 4455 107 4000 LDT
104085 Chase S35006/2700/42W/80/A30 4200 100 2700 LDT
104086 Chase S35006/3000/42W/80/A30 4200 100 3000 LDT
104087 Chase S/35006/3500/42W/80/A30 4330 104 3500 LDT
104088 Chase S35006/4000/42W/80/A30 4455 107 4000 LDT
104090 Chase S35006/2700/42W/80/A45 4200 100 2700 LDT
104091 Chase S35006/3000/42W/80/A45 4200 100 3000 LDT
104092 Chase S/35006/3500/42W/80/A45 4330 104 3500 LDT
104093 Chase S35006/4000/42W/80/A45 4455 107 4000 LDT
104384 Chase S35006/2700/42W/80/A60 4200 100 2700 LDT
104385 Chase S35006/3000/42W/80/A60 4200 100 3000 LDT
104095 Chase S35013/2700/42W/80/A90 4200 100 2700 LDT
104096 Chase S35013/3000/42W/80/A90 4200 100 3000 LDT
104097 Chase S35013/3500/42W/80/A90 4330 104 3500 LDT
104098 Chase S35013/4000/42W/80/A90 4455 107 4000 LDT
304028 Chase S35006/2700/14W/80/A15 1485 107 2700 LDT
304029 Chase S35006/3000/14W/80/A15 1500 108 3000 LDT
304030 Chase S/35006/3500/14W/80/A15 1540 110 3500 LDT
304031 Chase S35006/4000/14W/80/A15 1570 113 4000 LDT
304032 Chase S35006/2700/14W/80/A30 1485 107 2700 LDT
304033 Chase S35006/3000/14W/80/A30 1500 108 3000 LDT
304034 Chase S/35006/3500/14W/80/A30 1540 110 3500 LDT
304036 Chase S35006/2700/14W/80/A45 1485 107 2700 LDT
304037 Chase S35006/3000/14W/80/A45 1500 108 3000 LDT
304038 Chase S/35006/3500/14W/80/A45 1540 110 3500 LDT
304039 Chase S35006/4000/14W/80/A45 1570 113 4000 LDT
304044 Chase S35006/2700/14W/80/A60 1485 107 2700 LDT
304045 Chase S35006/3000/14W/80/A60 1500 108 3000 LDT
304046 Chase S/35006/3500/14W/80/A60 1540 110 3500 LDT
304047 Chase S35006/4000/14W/80/A60 1570 113 4000 LDT
304040 Chase S35013/2700/14W/80/A90 1485 107 2700 LDT
304041 Chase S35013/3000/14W/80/A90 1500 108 3000 LDT
304042 Chase S35013/3500/14W/80/A90 1540 110 3500 LDT
304043 Chase S35013/4000/14W/80/A90 1570 113 4000 LDT
304004 Chase S35006/2700/27W/80/A15 2945 110 2700 LDT
304005 Chase S35006/3000/27W/80/A15 2970 110 3000 LDT
304006 Chase S/35006/3500/27W/80/A15 3055 114 3500 LDT
304007 Chase S35006/4000/27W/80/A15 3135 117 4000 LDT
304008 Chase S35006/2700/27W/80/A30 2945 110 2700 LDT
304009 Chase S35006/3000/27W/80/A30 2970 110 3000 LDT
304010 Chase S/35006/3500/27W/80/A30 3055 114 3500 LDT
304011 Chase S35006/4000/27W/80/A30 3135 117 4000 LDT
304012 Chase S35006/2700/27W/80/A45 2945 110 2700 LDT
304013 Chase S35006/3000/27W/80/A45 2970 110 3000 LDT
304020 Chase S35006/2700/27W/80/A60 2945 110 2700 LDT
304021 Chase S35006/3000/27W/80/A60 2970 110 3000 LDT
304022 Chase S/35006/3500/27W/80/A60 3055 114 3500 LDT
304023 Chase S35006/4000/27W/80/A60 3135 117 4000 LDT
304016 Chase S35013/2700/27W/80/A90 2945 110 2700 LDT
304017 Chase S35013/3000/27W/80/A90 2970 110 3000 LDT
304018 Chase S35013/3500/27W/80/A90 3055 114 3500 LDT
304019 Chase S35013/4000/27W/80/A90 3135 117 4000 LDT
104294 Chase S35006/FAS/27W/90/A15 2080 78 FAS LDT
104295 Chase S35006/FAS/27W/90/A30 2080 78 FAS LDT
104296 Chase S35006/FAS/27W/90/A45 2080 78 FAS LDT
104297 Chase S35006/FAS/35W/90/A15 2535 73 FAS LDT
104298 Chase S35006/FAS/35W/90/A30 2535 73 FAS LDT
104299 Chase S35006/FAS/35W/90/A45 2535 73 FAS LDT
104300 Chase S35006/FAS/42W/90/A15 2930 70 FAS LDT
104301 Chase S35006/FAS/42W/90/A30 2930 70 FAS LDT
104302 Chase S35006/FAS/42W/90/A45 2930 70 FAS LDT
104447 Chase S35006/FAS/27W/90/A60 2080 78 FAS LDT
104448 Chase S35006/FAS/27W/90/A90 2080 78 FAS LDT
104450 Chase S35006/FAS/35W/90/A60 2535 73 FAS LDT
104451 Chase S35006/FAS/35W/90/A90 2535 73 FAS LDT
104453 Chase S35006/FAS/42W/90/A60 2930 70 FAS LDT
104454 Chase S35006/FAS/42W/90/A90 2930 70 FAS LDT
104455 Chase S35006/BVF/14W/80/A15 1080 78 BVF LDT
104456 Chase S35006/FBS/14W/80/A15 855 62 FBS LDT
104457 Chase S35006/FZM/14W/80/A15 800 58 FZM LDT
104458 Chase S35006/FSM/14W/80/A15 800 58 FSM LDT
104487 Chase S35006/FSH/14W/80/A15 1180 85 FSH LDT
104459 Chase S35006/BVF/14W/80/A30 1080 78 BVF LDT
104460 Chase S35006/FBS/14W/80/A30 855 62 FBS LDT
104461 Chase S35006/FZM/14W/80/A30 800 58 FZM LDT
104462 Chase S35006/FSM/14W/80/A30 800 58 FSM LDT
104488 Chase S35006/FSH/14W/80/A30 1180 85 FSH LDT
104463 Chase S35006/BVF/14W/80/A45 1080 78 BVF LDT
104464 Chase S35006/FBS/14W/80/A45 855 62 FBS LDT
104465 Chase S35006/FZM/14W/80/A45 800 58 FZM LDT
104466 Chase S35006/FSM/14W/80/A45 800 58 FSM LDT
104489 Chase S35006/FSH/14W/80/A45 1180 85 FSH LDT
104467 Chase S35006/BVF/14W/80/A60 1080 78 BVF LDT
104468 Chase S35006/FBS/14W/80/A60 855 62 FBS LDT
104469 Chase S35006/FZM/14W/80/A60 800 58 FZM LDT
104470 Chase S35006/FSM/14W/80/A60 800 58 FSM LDT
104483 Chase S35006/FSH/14W/80/A60 1180 85 FSH LDT
104490 Chase S35006/BVF/20W/80/A15 1540 77 BVF LDT
104491 Chase S35006/FBS/20W/80/A15 1220 61 FBS LDT
104492 Chase S35006/FZM/20W/80/A15 1140 57 FZM LDT
104493 Chase S35006/FSM/20W/80/A15 1140 57 FSM LDT
104506 Chase S35006/FSH/20W/80/A15 1680 84 FSH LDT
104494 Chase S35006/BVF/20W/80/A30 1540 77 BVF LDT
104495 Chase S35006/FBS/20W/80/A30 1220 61 FBS LDT
104496 Chase S35006/FZM/20W/80/A30 1140 57 FZM LDT
104497 Chase S35006/FSM/20W/80/A30 1140 57 FSM LDT
104507 Chase S35006/FSH/20W/80/A30 1680 84 FSH LDT
104498 Chase S35006/BVF/20W/80/A45 1540 77 BVF LDT
104499 Chase S35006/FBS/20W/80/A45 1220 61 FBS LDT
104500 Chase S35006/FZM/20W/80/A45 1140 57 FZM LDT
104501 Chase S35006/FSM/20W/80/A45 1140 57 FSM LDT
104508 Chase S35006/FSH/20W/80/A45 1680 84 FSH LDT
104502 Chase S35006/BVF/20W/80/A60 1540 77 BVF LDT
104503 Chase S35006/FBS/20W/80/A60 1220 61 FBS LDT
104504 Chase S35006/FZM/20W/80/A60 1140 57 FZM LDT
104505 Chase S35006/FSM/20W/80/A60 1140 57 FSM LDT
104509 Chase S35006/FSH/20W/80/A60 1680 84 FSH LDT
104240 Chase S35006/BVF/27W/80/A15 2065 77 BVF LDT
104241 Chase S35006/FBS/27W/80/A15 1635 61 FBS LDT
104243 Chase S35006/FSM/27W/80/A15 1530 57 FSM LDT
104327 Chase S35006/FSH/27W/80/A15 2250 84 FSH LDT
104244 Chase S35006/BVF/27W/80/A30 2065 77 BVF LDT
104245 Chase S35006/FBS/27W/80/A30 1635 61 FBS LDT
104246 Chase S35006/FZM/27W/80/A30 1530 57 FZM LDT
104247 Chase S35006/FSM/27W/80/A30 1530 57 FSM LDT
104328 Chase S35006/FSH/27W/80/A30 2250 84 FSH LDT
104248 Chase S35006/BVF/27W/80/A45 2065 77 BVF LDT
104249 Chase S35006/FBS/27W/80/A45 1635 61 FBS LDT
104250 Chase S35006/FZM/27W/80/A45 1530 57 FZM LDT
104251 Chase S35006/FSM/27W/80/A45 1530 57 FSM LDT
104329 Chase S35006/FSH/27W/80/A45 2250 84 FSH LDT
104471 Chase S35006/BVF/27W/80/A60 2065 77 BVF LDT
104472 Chase S35006/FBS/27W/80/A60 1635 61 FBS LDT
104473 Chase S35006/FZM/27W/80/A60 1530 57 FZM LDT
104474 Chase S35006/FSM/27W/80/A60 1530 57 FSM LDT
104484 Chase S35006/FSH/27W/80/A60 2250 84 FSH LDT
104252 Chase S35006/BVF/35W/80/A15 2590 74 BVF LDT
104253 Chase S35006/FBS/35W/80/A15 2115 61 FBS LDT
104254 Chase S35006/FZM/35W/80/A15 1980 57 FZM LDT
104255 Chase S35006/FSM/35W/80/A15 1980 57 FSM LDT
104331 Chase S35006/FSH/35W/80/A15 2755 79 FSH LDT
104256 Chase S35006/BVF/35W/80/A30 2590 74 BVF LDT
104257 Chase S35006/FBS/35W/80/A30 2115 61 FBS LDT
104258 Chase S35006/FZM/35W/80/A30 1980 57 FZM LDT
104259 Chase S35006/FSM/35W/80/A30 1980 57 FSM LDT
104332 Chase S35006/FSH/35W/80/A30 2755 79 FSH LDT
104260 Chase S35006/BVF/35W/80/A45 2590 74 BVF LDT
104261 Chase S35006/FBS/35W/80/A45 2115 61 FBS LDT
104262 Chase S35006/FZM/35W/80/A45 1980 57 FZM LDT
104263 Chase S35006/FSM/35W/80/A45 1980 57 FSM LDT
104333 Chase S35006/FSH/35W/80/A45 2755 79 FSH LDT
104475 Chase S35006/BVF/35W/80/A60 2590 74 BVF LDT
104476 Chase S35006/FBS/35W/80/A60 2115 61 FBS LDT
104477 Chase S35006/FZM/35W/80/A60 1980 57 FZM LDT
104478 Chase S35006/FSM/35W/80/A60 1980 57 FSM LDT
104485 Chase S35006/FSH/35W/80/A60 2755 79 FSH LDT
104264 Chase S35006/BVF/42W/80/A15 2870 69 BVF LDT
104265 Chase S35006/FBS/42W/80/A15 2450 59 FBS LDT
104266 Chase S35006/FZM/42W/80/A15 2325 56 FZM LDT
104267 Chase S35006/FSM/42W/80/A15 2325 56 FSM LDT
104335 Chase S35006/FSH/42W/80/A15 3155 76 FSH LDT
104336 Chase S35006/FSH/42W/80/A30 3155 76 FSH LDT
104272 Chase S35006/BVF/42W/80/A45 2870 69 BVF LDT
104273 Chase S35006/FBS/42W/80/A45 2450 59 FBS LDT
104274 Chase S35006/FZM/42W/80/A45 2325 56 FZM LDT
104275 Chase S35006/FSM/42W/80/A45 2325 56 FSM LDT
104337 Chase S35006/FSH/42W/80/A45 3155 76 FSH LDT
104479 Chase S35006/BVF/42W/80/A60 2870 69 BVF LDT
104480 Chase S35006/FBS/42W/80/A60 2450 59 FBS LDT
104481 Chase S35006/FZM/42W/80/A60 2325 56 FZM LDT
104482 Chase S35006/FSM/42W/80/A60 2325 56 FSM LDT
104486 Chase S35006/FSH/42W/80/A60 3155 76 FSH LDT
104374 Chase S35006/2700/27W/80/A60 2945 110 2700 LDT
104375 Chase S35006/3000/27W/80/A60 2970 110 3000 LDT
104376 Chase S35006/3500/27W/80/A60 2950 110 3500 LDT
104377 Chase S35006/4000/27W/80/A60 3005 112 4000 LDT
104242 Chase S35006/FZM/27W/80/A15 1530 57 FZM LDT
104268 Chase S35006/BVF/42W/80/A30 2870 69 BVF LDT
104269 Chase S35006/FBS/42W/80/A30 2450 59 FBS LDT
104270 Chase S35006/FZM/42W/80/A30 2325 56 FZM LDT
104271 Chase S35006/FSM/42W/80/A30 2325 56 FSM LDT
104386 Chase S35006/3500/42W/80/A60 4330 104 3500 LDT
104387 Chase S35006/4000/42W/80/A60 4455 107 4000 LDT
304014 Chase S35006/3500/27W/80/A45 3055 114 3500 LDT
304015 Chase S35006/4000/27W/80/A45 3535 131 4000 LDT
304035 Chase S35006/4000/14W/80/A30 1570 113 4000 LDT
104670 Chase S35006/AMB2200/14W/80/A45 1020 73 AMB2200 LDT
104671 Chase S35013/AMB2200/14W/80/A90 1020 73 AMB2200 LDT
104688 Chase S35006/AMB2200/14W/80/A60 1020 73 AMB2200 LDT
104669 Chase S35006/AMB2200/14W/80/A30 1020 73 AMB2200 LDT
104674 Chase S35006/AMB2200/20W/80/A45 1410 71 AMB2200 LDT
104675 Chase S35013/AMB2200/20W/80/A90 1410 71 AMB2200 LDT
104689 Chase S35006/AMB2200/20W/80/A60 1410 71 AMB2200 LDT
104668 Chase S35006/AMB2200/14W/80/A15 1020 73 AMB2200 LDT
104672 Chase S35006/AMB2200/20W/80/A15 1410 71 AMB2200 LDT
104673 Chase S35006/AMB2200/20W/80/A30 1410 71 AMB2200 LDT
104678 Chase S35006/AMB2200/27W/80/A45 1870 70 AMB2200 LDT
104679 Chase S35013/AMB2200/27W/80/A90 1870 70 AMB2200 LDT
104690 Chase S35006/AMB2200/27W/80/A60 1870 70 AMB2200 LDT
104676 Chase S35006/AMB2200/27W/80/A15 1870 70 AMB2200 LDT
104677 Chase S35006/AMB2200/27W/80/A30 1870 70 AMB2200 LDT
104681 Chase S35006/AMB2200/35W/80/A30 2585 74 AMB2200 LDT
104682 Chase S35006/AMB2200/35W/80/A45 2585 74 AMB2200 LDT
104683 Chase S35013/AMB2200/35W/80/A90 2585 74 AMB2200 LDT
104691 Chase S35006/AMB2200/35W/80/A60 2585 74 AMB2200 LDT
104680 Chase S35006/AMB2200/35W/80/A15 2585 74 AMB2200 LDT
104686 Chase S35006/AMB2200/42W/80/A45 2930 70 AMB2200 LDT
104687 Chase S35013/AMB2200/42W/80/A90 2930 70 AMB2200 LDT
104692 Chase S35006/AMB2200/42W/80/A60 2930 70 AMB2200 LDT
104684 Chase S35006/AMB2200/42W/80/A15 2930 70 AMB2200 LDT
104685 Chase S35006/AMB2200/42W/80/A30 2930 70 AMB2200 LDT
304670 Chase S35006/AMB2200/14W/80/A45 1020 73 AMB2200 LDT
304671 Chase S35013/AMB2200/14W/80/A90 1020 73 AMB2200 LDT
304688 Chase S35006/AMB2200/14W/80/A60 1020 73 AMB2200 LDT
304668 Chase S35006/AMB2200/14W/80/A15 1020 73 AMB2200 LDT
304669 Chase S35006/AMB2200/14W/80/A30 1020 73 AMB2200 LDT
304678 Chase S35006/AMB2200/27W/80/A45 1870 70 AMB2200 LDT
304679 Chase S35013/AMB2200/27W/80/A90 1870 70 AMB2200 LDT
304689 Chase S35006/AMB2200/27W/80/A60 1870 70 AMB2200 LDT
304676 Chase S35006/AMB2200/27W/80/A15 1870 70 AMB2200 LDT
304677 Chase S35006/AMB2200/27W/80/A30 1870 70 AMB2200 LDT

Technical Specifications

Chase DALI DC-String Chase TEC


Accessories List

Track Accessories List


Installation Guides

Chase DALI DC String Chase


Catalogues

Special color temperatures


3D-Sketchup

Chase



Subscribe to our newsletter
